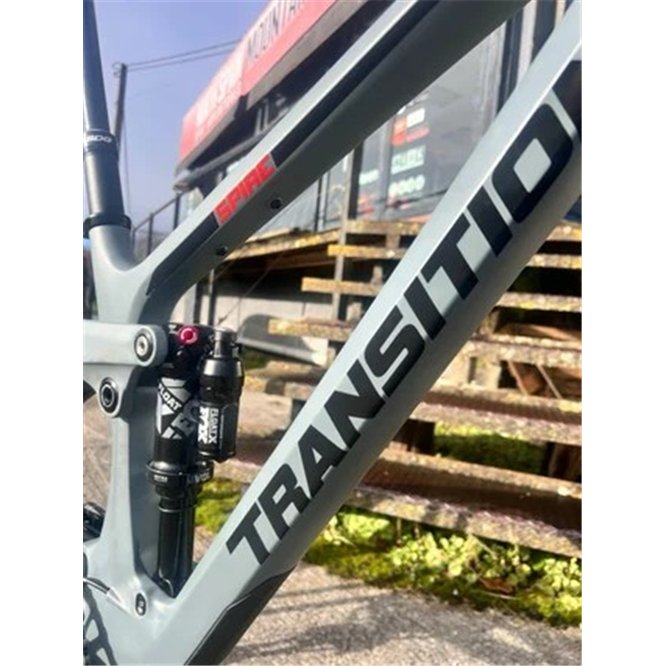

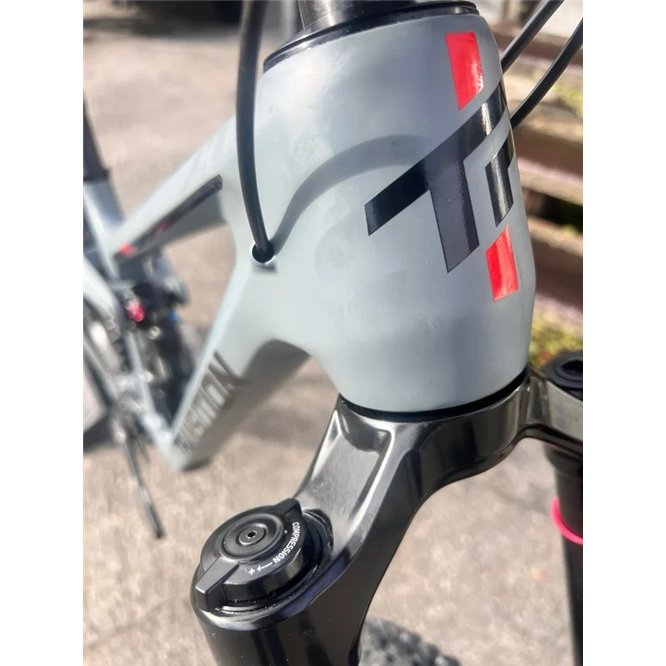

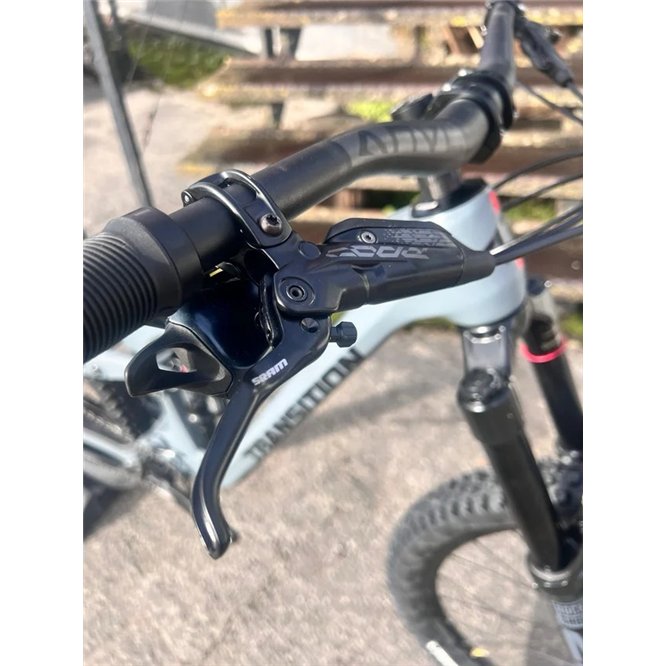

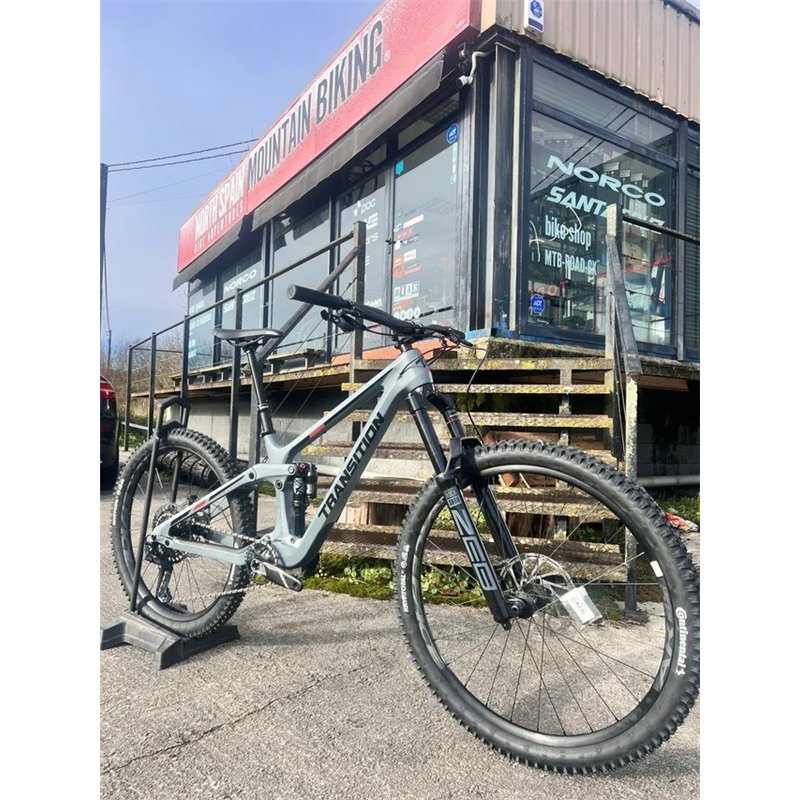

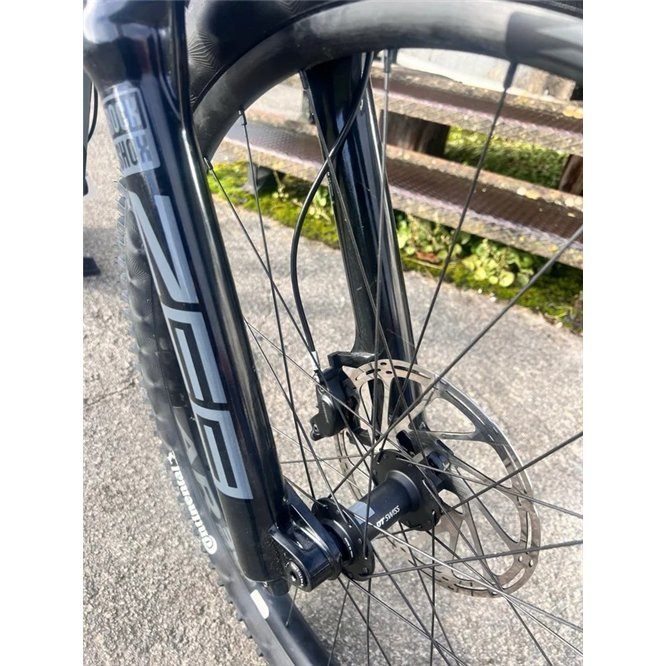

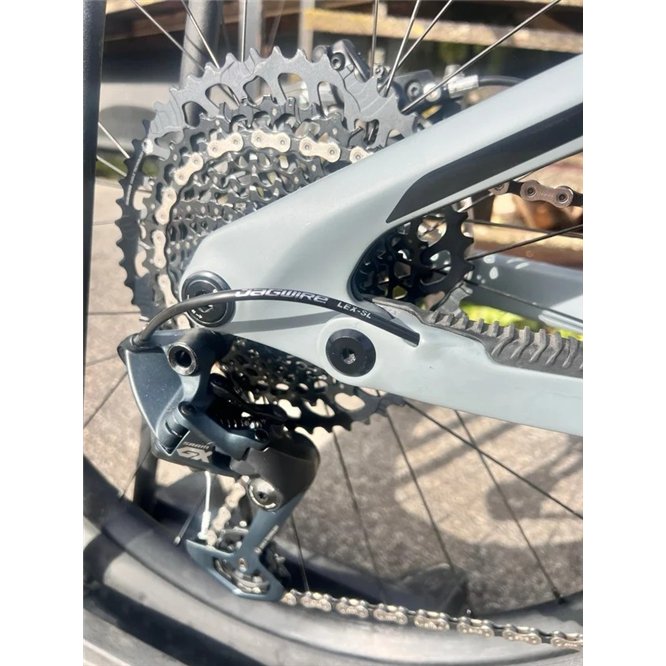

Bicicleta Transition Spire Carbon 29”/27.5” Mullet, color gris mate, talla M. Enduro. 170mm delanteros y 170mm traseros. Cuadro de carbono. Bicicleta super polivalente. Horquilla Rock Shox Zeb y amortiguador Fox Float X Performance. Ruedas Race Face AR30 con bujes DT Swiss. Grupo Sram GX Eagle 12v..Cassette 10-52. Plato 32T. Bielas Descendant 170mm. Tija SDG 170mm. Frenos Sram Code 4 pistones con discos 200mm. Manillar Anvl Potencia Anvl. Sillín Fizik. Cubiertas tubeless Continental Kryptotal. Factura, garantía y envío.

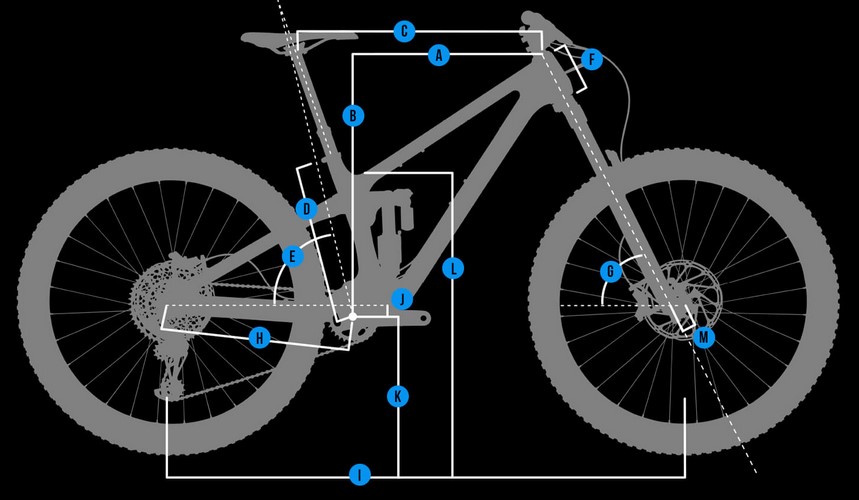

GEOMETRY
Speed Balanced Geometry
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
| |
SM |
MD |
LG |
|
|
| |
HIGH/LOW |
HIGH/LOW |
HIGH/LOW |
HIGH/LOW |
HIGH/LOW |
|
|
|
|
|
|
|
| A. REACH |
430 / 425 |
460 / 455 |
485 / 480 |
510 / 505 |
535 / 530 |
| B. STACK |
619 / 624 |
619 /624 |
628 / 633 |
637 / 642 |
646 / 651 |
| C. EFFECTIVE TT LENGTH |
547 / 550 |
577 / 580 |
605 / 608 |
633 / 636 |
661 / 664 |
| D. SEAT TUBE LENGTH |
360 |
390 |
430 |
460 |
490 |
| E. EFFECTIVE ST ANGLE |
79.6° / 79.1° |
78.8° / 78.3° |
78.1° / 77.6° |
77.5° / 77° |
77.2° / 76.7° |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE |
600 |
660 |
720 |
780 |
820 |
| ACTUAL ST ANGLE |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
70.5° / 70° |
| SEAT TUBE OFFSET AT BB |
100 |
100 |
100 |
100 |
100 |
| F. HEAD TUBE LENGTH |
100 |
100 |
110 |
120 |
130 |
| G. HEAD TUBE ANGLE |
63° / 62.5° |
63° / 62.5° |
63° / 62.5° |
63° / 62.5° |
63° / 62.5° |
| H. CHAINSTAY LENGTH |
446 / 448 |
446 / 448 |
446 / 448 |
452 / 454 |
452 / 454 |
| I. WHEELBASE |
1227 / 1229 |
1257 / 1259 |
1287 / 1289 |
1322 / 1324 |
1352 / 1354 |
| J. BOTTOM BRACKET DROP |
25 / 32 |
25 / 32 |
25 / 32 |
25 / 32 |
25 / 32 |
| K. ESTIMATED BB HEIGHT |
350 / 343 |
350 / 343 |
350 / 343 |
350 / 343 |
350 / 343 |
| L. STAND OVER HEIGHT |
685 / 680 |
700 / 695 |
715 / 710 |
730 / 725 |
745 / 740 |
| M. FORK OFFSET |
44 |
44 |
44 |
44 |
44 |
FRAME FEATURES
FRAME FEATURES
1. Lifetime Warranty
At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.
2. Frame Material
The Spire carbon uses premium Japanese Toray fiber using a unique latex coated EPS molding process to create tighter edge radius control using less material. The Spire alloy features a frame made from tough and dependable heat treated 6061 aluminum to strike the right balance of strength, durability and ride quality.
3. Pivot Technology
Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.
4. Frame Protection
We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.
5. Geo Adjust Chip
Change the attitude of the bike with a simple flip of a chip. Our high and low settings give you two very usable geo settings to suite your riding style. Our high setting is comparable to most other companies low setting so there is a high shred warning in effect.
6. Size Specific Chainstays
The Spire has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
7. EnduroMAX Bearings
We exclusively use EnduroMAX suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.
8. Gear Accessory Mount
Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.
9. Dual Crown Fork Compatible
Both the carbon and alloy frame options are fully dual crown compatible for those wanting to dip their toes into the DH world.
10. Tire Clearance
Ample clearance for mud and tires up to 2.6" width.
11. User Friendly Cable Routing
To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.
Feature available on carbon framesets only.
12. Press In Headset
Our ZS56/ZS56 press in headset gives you the freedom to use reach adjust and angle adjust headsets for maximum adjustability.
Adjustable headsets are not supplied with Spire framesets or complete bikes.
13. Water Bottle Compatibility
We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.
14. Universal Derailleur Hanger
The Spire features a SRAM Universal Derailleur Hanger that protects your derailleur against chain jams by pivoting back and out of the way, and slips slightly when encountering impacts. It improves shifting performance, guarantees better alignment, works with all drivetrains and is available anywhere.
