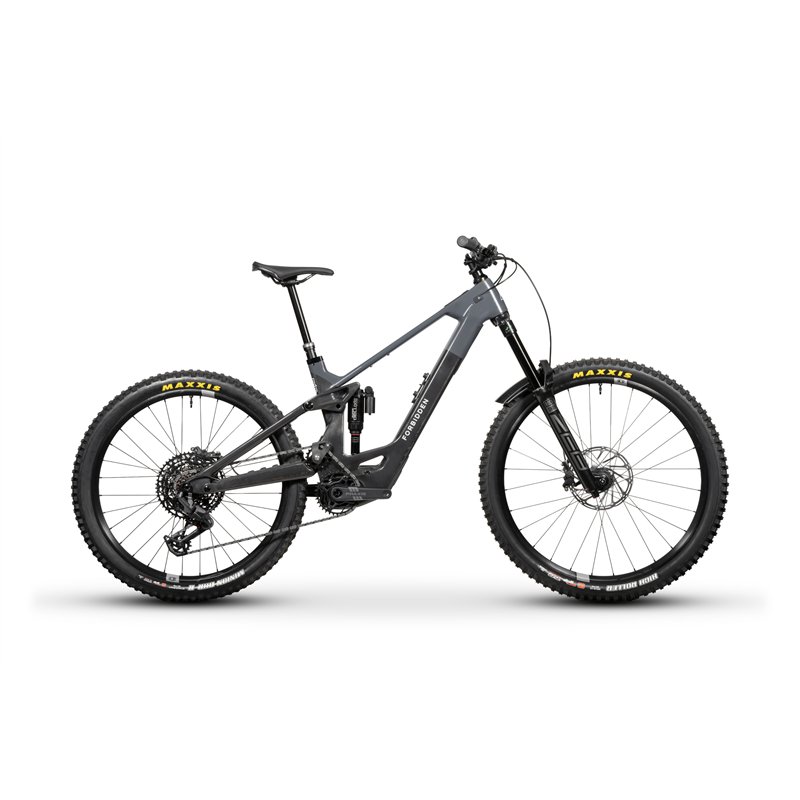

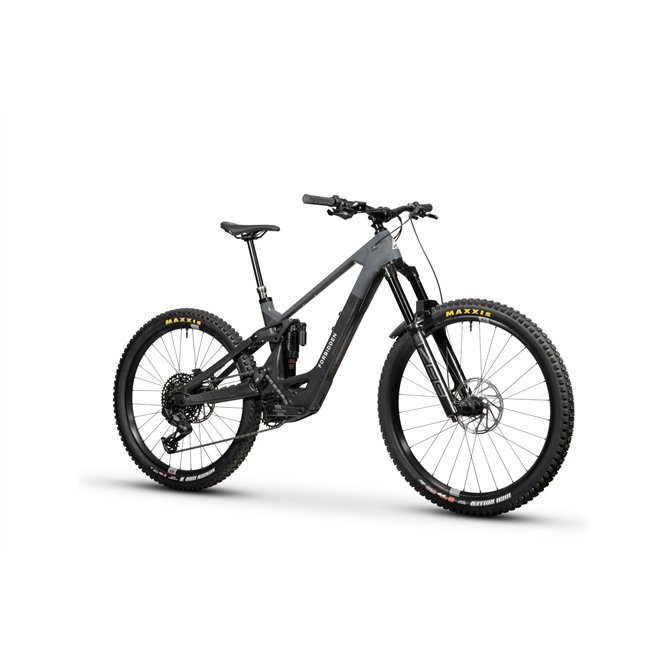

FORBIDDEN DREADNOUGHT E TIER4
search
FORBIDDEN DREADNOUGHT E TIER4
search

FORBIDDEN DREADNOUGHT E TIER4

Y llegó la bestia. La Dreadnought E está aquí. Avinox M2 o M2S. Batería de 800 Wh o 600 Wh. 170mm Rear / 180mm Front. Mixed wheels (MX).

7.999,00 €



Envío gratuito A partir de 59 euros recibe tu compra en casa sin gastos de transporte por MRW en 24h.



Pago seguro Tarjeta de Crédito, Bizum o PayPal, con certificado de servidor seguro.



Llámanos Para cualquier duda CONTACTA con nosotros.

Introducing Dreadnought E. An e-MTB built from the ground up with a singular purpose – to charge through the most chaotic, rowdy lines you can find, and whisk you back to the top, asking for more. Big travel. Full power. Zero hesitation.

Featuring 170mm of rear travel paired with a 180mm fork, combined with a rearward, yet reserved axle path, Dreadnought E has the ability to plow when you drop your heels, but still offer pop and support when it’s needed to get off the ground or pump to generate that addictive speed.

Dreadnought E is spec’d with the all-new Avinox M2 and M2S drive systems. Tier 1 and Tier 2 run the Avinox M2S, a 2.6 kg unit delivering 130 Nm of torque (150 Nm Boost) and 1300 watts. Tier 3 and Tier 4 run the Avinox M2, weighing 2.65 kg, delivering 110 Nm of torque (125 Nm Boost) and 1100 watts. Both options can be paired with 600 Wh or 800 Wh batteries, so you can choose a lighter setup or maximum range depending on how deep the mission goes.

Dreadnought E isn’t here to play nice, it’s here to go further, hit harder, and redefine what a full-power, big-travel e-MTB is supposed to feel like.



Intended Use

All Mountain

Suspension

170mm Rear / 180mm Front

Wheel Size

Mixed Wheel (MX)

Motor | Battery

Avinox M2S or Avinox M2 | 600 Wh or 800 Wh



SPECS:

  Dreadnought E Tier 1 800Wh Dreadnought E Tier 2 800Wh Dreadnought E Tier 3 800Wh Dreadnought E Tier 4 800Wh
FRAME Dreadnought E Full Carbon Dreadnought E Full Carbon Dreadnought E Full Carbon Dreadnought E Full Carbon

High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings

FORK RockShox Zeb Ultimate  Fox 38 Factory  RockShox ZEB Select+ RockShox ZEB

180mm Travel | Charger 3.2 RC2 | Linear XL w/ Buttercup | LSR, HSC/LSC, Adjustable Bottom Out External | 44mm Offset | 15x110mm Thru-Axle | Red 180mm Travel | Grip X2 | Float Glidecore | HSR/LSR, HSC/LSC Adjust | 44mm Offset | 15x110mm Thru-Axle | Gloss Orange 180mm Travel | Charger 3.2 RC2 | LinearXL | Rebound, HSC/LSC Adjust | Adjustable Bottom Out Internal | 44mm Offset | Maxle Stealth 15x110 Thru-Axle | Gloss Black 180mm Travel | Delta RC | Debonair + | LSR/LSC Adjust | 44mm Offset | Maxle Stealth 15x110 Thru-Axle | Gloss Black

REAR SHOCK RockShox Vivid Coil  Fox Float X2 Air Factory RockShox Vivid Air Select+ RockShox Super Deluxe

S1 - 300lb, S2 - 350lb, S3 - 400lb, S4 - 450lb | LSR, HSC/LSC, ABO Adjust | 2 Position Threshold Lever | Bearing Adapter Eyelets | S1/S2 R55 C26 Tune, S3/S4 R55 C30 Tune | 230x65mm Evol | HSR/LSR, HSC/LSC | 2 Position Threshold Lever | Bearing Adapter Eyelets | CL60, RS50 LMM, Rezi B60, Bleed 0.9, MCU Short | 230x65mm LinearXL | Rebound, LSC Adjust | 2 Position Threshold Lever | Bearing Adapter Eyelets | S1/S2 R55 C26 Tune, S3/S4 R55 C30 Tune | 230x65mm LinearXL | Rebound Adjust | Bearing Adapter Eyelets | S1/S2 R55 C26 Tune, S3/S4 R55 C30 Tune | 230x65mm

HEADSET FSA Orbit ZS  FSA Orbit ZS  FSA Orbit ZS FSA Orbit ZS

ZS44/ZS56 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race ZS44/ZS56 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race ZS44/ZS56 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race ZS44/ZS56 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race

GRIPS Forbidden Forbidden Forbidden Forbidden

128mm length | Single Sided Lock-On | Black 128mm length | Single Sided Lock-On | Black 128mm length | Single Sided Lock-On | Black 128mm length | Single Sided Lock-On | Black

HANDLE BARS OneUp Alloy OneUp Alloy Forbidden Alloy Forbidden Alloy

800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore

STEM OneUp Forged  OneUp Forged Forbidden Forged Forbidden Forged

42mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum 42mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum 40mm Length | 35mm Bar Clamp | Black 40mm Length | 35mm Bar Clamp | Black

SEAT POST OneUp V3 TranzX Reverse  TranzX Reverse  TranzX Reverse

31.6mm | Size Specific Travel S1:150mm / S2:180mm / S3:210mm / S4:240mm 31.6mm | Size Specific Travel S1:160mm / S2:180mm / S3:210mm / S4:240mm 31.6mm | Size Specific Travel S1:160mm / S2:180mm / S3:210mm / S4:240mm 31.6mm | Size Specific Travel S1:160mm / S2:180mm / S3:210mm / S4:240mm

SEAT POST REMOTE OneUp V3 TransX GLS  TransX GLS  TransX GLS

Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote| Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote Aluminum Remote | Bearing | MatchMaker X Integrated Dropper Remote Aluminum Remote | Bearing | 22.2mm Clamp

SEAT POST CLAMP Forbidden Forbidden Forbidden  Forbidden

7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized

SADDLE Fizik Terra Aidon X5 Fizik Terra Aidon X5 Forbidden  Forbidden

145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black 143mm Width | Atmos Shaping | Cro-Mo Rail | Black 143mm Width | Atmos Shaping | Cro-Mo Rail | Black

FRONT BRAKE SRAM Maven - Ultimate  SRAM Maven - Silver  SRAM Maven SRAM DB4

Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Base | Stealth Body | Reach Adjustment | Organic Pads Stealth Body | Reach Adjustment | Organic Pads

FRONT BRAKE ROTOR SRAM HS2  SRAM Centerline  SRAM Centerline  SRAM Centerline

6-Bolt | 2.0mm Thickness | Superior Heat Managment 6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness

REAR BRAKE SRAM Maven - Ultimate  SRAM Maven - Silver  SRAM Maven  SRAM DB4

Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Base | Stealth Body | Reach Adjustment | Organic Pads Stealth Body | Reach Adjustment | Organic Pads

REAR BRAKE ROTOR SRAM HS2 SRAM Centerline  SRAM Centerline  SRAM Centerline

6-Bolt | 2.0mm Thickness | Superior Heat Managment 6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness

REAR SHIFTER SRAM Pod Rocker SRAM Pod Rocker SRAM Eagle 90 SRAM Eagle 70

With MMX Clamp | AXS Controller | Rocking Actuation With MMX Clamp | AXS Controller | Rocking Actuation With MMX Clamp | Single Click | Two Button Design 22.2 Clamp | Single Click | Two Button Design

REAR DERAILLEUR SRAM X0 T-Type  SRAM GX T-Type  SRAM Eagle 90 T-Type SRAM Eagle 70 T-Type

Hangerless Interface | Overload Clutch | Replaceable Skid Plates Hangerless Interface | Overload Clutch | Replaceable Skid Plates Hangerless Interface | Replaceable Skid Plates Hangerless Interface | Replaceable Skid Plates

CASSETTE SRAM XS-1295  SRAM XS-1275  SRAM XS-1270  SRAM XS-1270

12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T 12speed | HG Fit | 10-12-14-16-18-21-24-28-32-38-44-52T 12speed | HG Fit | 10-12-14-16-18-21-24-28-32-38-44-52T

CHAIN SRAM GX T-Type  SRAM GX T-Type SRAM Eagle 70 T-Type  SRAM Eagle 70 T-Type

12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126

CRANKSET SRAM X0 E Praxis Alloy E-Cranks Praxis Alloy E-Cranks  Praxis Alloy E-Cranks

150mm | SRAM 34T Chainring | 55mm Chainline | Alloy 150mm | SRAM 34T Chainring | 55mm Chainline | Black 150mm | SRAM 34T Chainring | 55mm Chainline | Black 150mm | SRAM 34T Chainring | 55mm Chainline | Alloy

PEDALS Not included Not included Not included Not included

UPPER CHAIN GUIDE Forbidden Race Guide Forbidden Race Guide Forbidden Race Guide Forbidden Race Guide
BOTTOM BRACKET Avinox  Avinox  Avinox  Avinox

ISIS Interface ISIS Interface ISIS Interface ISIS Interface

FRONT HUB Crank Brothers Ratchet Crank Brothers Ratchet Crankbrothers Synthesis  Crankbrothers Synthesis

110x15mm | 28-Hole | 6-Bolt | Black Anodized 110x15mm | 28-Hole | 6-Bolt | Black Anodized 110x15mm | 28-Hole | 6-Bolt | Black Anodized 110x15mm | 28-Hole | 6-Bolt | Black Anodized

FRONT AXLE Maxle Stealth Fox Kabolt Maxle Stealth Maxle Stealth

6mm Hex Fitment 6mm Hex Fitment 6mm Hex Fitment 6mm Hex Fitment

REAR HUB Crank Brothers Ratchet Crank Brothers Ratchet Crankbrothers Synthesis Crankbrothers Synthesis

Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal HG Driver | 148x12mm | 32-Hole | 6-Bolt HG Driver | 148x12mm | 32-Hole | 6-Bolt

REAR AXLE SRAM Maxle Stealth SRAM Maxle Stealth SRAM Maxle Stealth SRAM Maxle Stealth

180x12mm | 5mm Hex Fitment 180x12mm | 5mm Hex Fitment 180x12mm | 5mm Hex Fitment 180x12mm | 5mm Hex Fitment

SPOKES Sapim E-Light / Strong Sapim E-Light / Strong Sapim E-Light / Strong Sapim E-Light / Strong

Front: Sapim E-Light / Rear: Sapim Strong | Black ED Coated Stainless | Black Brass 14mm Nipples Front: Sapim E-Light / Rear: Sapim Strong | Black ED Coated Stainless | Black Brass 14mm Nipples Front: Sapim E-Light / Rear: Sapim Strong | Black ED Coated Stainless | Black Brass 14mm Nipples Front: Sapim E-Light / Rear: Sapim Strong | Black ED Coated Stainless | Black Brass 14mm Nipples

RIMS Crankbrothers Synthesis Carbon Enduro Crank Brothers Alloy 2.0 Crankbrothers Alloy 1.0 Crankbrothers Alloy 1.0

Front 31.5mm / Rear 31.5mm Internal Width | Tubeless Ready | Black with Grey Graphics Front 31mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics Front 31.5mm / Rear 31.5mm Internal Width | Tubeless Ready | Black with Grey Graphics Front 31.5mm / Rear 31.5mm Internal Width | Tubeless Ready | Black with Grey Graphics

FRONT TIRE Maxxis High Roller 3 3C, MaxxGrip, DH Casing Maxxis High Roller 3 3C, MaxxGrip, DH Casing Maxxis High Roller 3 3C, MaxxGrip, DH Casing Maxxis High Roller 3 3C, MaxxGrip, DH Casing

29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | DH Casing 29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | DH Casing 29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | DH Casing 29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO+ Casing

REAR TIRE Maxxis DHRII 3C, MaxxGrip, DH Casing Maxxis DHRII 3C, MaxxGrip, DH Casing Maxxis DHRII 3C, MaxxGrip, DH Casing Maxxis DHRII 3C, MaxxGrip, DH Casing

27.5 x 2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing 27.5 x 2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing 27.5 x 2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing 27.5 x 2.5 | 3C MaxxGrip Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing

MOTOR Avinox M2S  Avinox M2S  Avinox M2 Avinox M2

Drive Unit: 130 Nm | 1300w Peak Power | Avinox DP100 Screen: 2-inch OLED Touch Screen Control Display | Avinox Wireless Controllers: Right and left sides Drive Unit: 130 Nm | 1300w Peak Power | Avinox DP100 Screen: 2-inch OLED Touch Screen Control Display | Avinox Wireless Controllers: Right and left sides Drive Unit: 110 Nm (120Nm Boost) | 1100w Peak Power | Avinox DPC100 Screen: 2-inch OLED Display | Avinox Wireless Controllers: Right and left sides Drive Unit: 110 Nm (120Nm Boost) | 1100w Peak Power | Avinox DPC100 Screen: 2-inch OLED Display | Avinox Wireless Controllers: Right and left sides

BATTERY Avinox Avinox Avinox Avinox

Integrated Li-ion Battery: 600Wh or 800Wh Integrated Li-ion Battery: 600Wh or 800Wh Integrated Li-ion Battery: 600Wh or 800Wh Integrated Li-ion Battery: 600Wh or 800Wh

Included Frame Protection Film Frame Protection Film Frame Protection Film Frame Protection Film

Preinstalled in High Wear Areas. Full OE Integrated Kit Available Extra Preinstalled in High Wear Areas. Full OE Integrated Kit Available Extra Preinstalled in High Wear Areas. Full OE Integrated Kit Available Extra Preinstalled in High Wear Areas. Full OE Integrated Kit Available Extra

Included Avinox 508W Charger Avinox 168W Charger Avinox 168W Charger Avinox 168W Charger

Approx. 1 h 30 min (0–75%) Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%) Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%) Approx. 4 h 45 min (0–100%)approx. 3 h 3 min (0–75%)

Included AXS Extension Cord AXS Extension Cord Fidlock TWIST Bike Base Fidlock TWIST Bike Base
Included Stans Sealant - 250ml Stans Sealant - 250ml
Included Fidlock TWIST Bike Base Fidlock TWIST Bike Base Stans Sealant - 250ml Stans Sealant - 250ml



GEOMETRY



  Fork Size 180mm S1 S2 S3 S4
A Reach 425 445 461 481
B Stack 635 648 669 682
C Hori. Top Tube Length 575 598 619 642
D Seat Tube Length 400 420 440 470
E Seat Tube Angle (Effective) 76.75 76.75 76.75 76.75
F Seat Tube Angle (Actual) 71.6 73.7 75.4 76.8
G Head Tube Length 100 115 138 153
H Head Tube Angle 63 63 63 63
I Front Center 782 808 835 861
J Rear Center 434 449 463 478
K Wheel base 1215.5 1256.9 1298.2 1339.5
L BB Drop -20 -20 -20 -20
M BB Height 340.8 340.8 340.8 340.8
N Stand Over 720 720 720 720
O Fork Length 596 596 596 596
P Fork Offset 44 44 44 44



One Ride

One of our core philosophies is that everyone who rides our bikes should experience a similar ride characteristic, regardless of your size or stature. To this end, we have put extra effort into our geometry and sizing and one of the major contributing factors behind a bike’s overall ride feel is its weight balance. The term ‘weight balance’ refers to the relationship between the rear-center and the front-center, and the resultant position of the rider’s center of gravity between the tire contact patches. How each tire is weighted, directly affects the grip characteristics of the bike.

This weight distribution will also have a profound effect on both the [bike’s] agility and its stability. Many brands talk about their bikes having “balanced geometry”, yet they only use a single rear-center (chainstay) measurement across all frame sizes. If the rear-center remains constant with each size while front-center change, then it stands to reason that each size [of bike] will see a different weight distribution and therefore a different ride characteristic. At Forbidden, in an effort to ensure a consistent ride experience across all sizes, we employ a scaled rear-center measurement for each individual frame size.



SIZING



FEATURES

01 Trifecta V3 Platform
02 Avinox Drive System
03 Touch Screen and Controls
04 AXS Extension Cord Compatible
05 Carbon Rocker Link
06 Idler Pulley
07 Custom Frame Protection
08 Waterbottle Fitment
