FORBIDDEN DRUID CorE 2

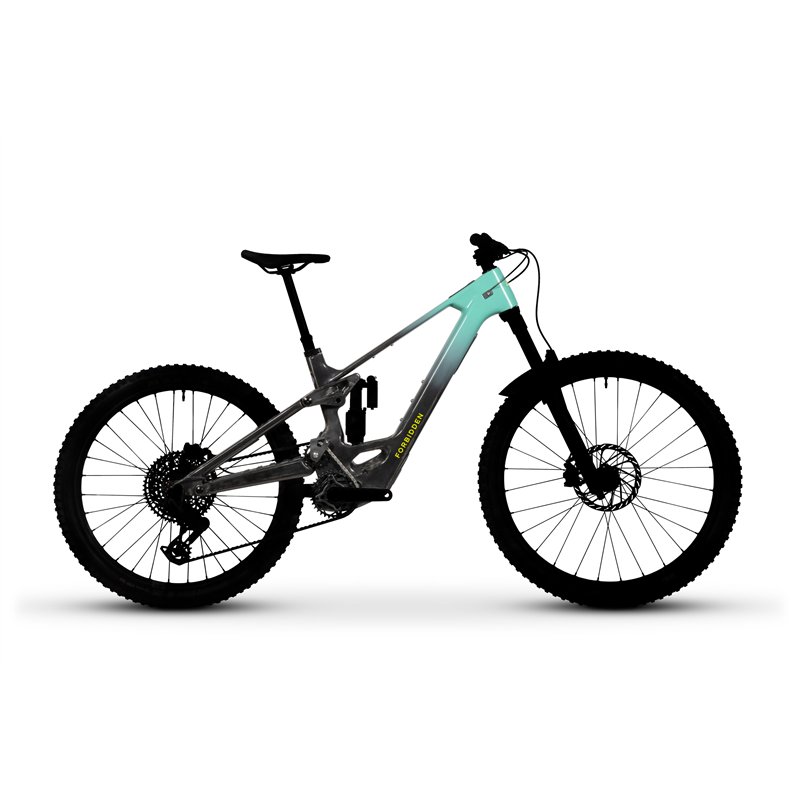

La Druid CorE está aquí. Equipada con el revolucionario Avinox M1 105 Nm 850 W drive system. Batería de 800 Wh con carga rápida. 150mm Rear / 160mm Front. Mixed wheels (MX).

10.199,00 €



Envío gratuito A partir de 59 euros recibe tu compra en casa sin gastos de transporte por MRW en 24h.



Pago seguro Tarjeta de Crédito, Bizum o PayPal, con certificado de servidor seguro.



Llámanos Para cualquier duda CONTACTA con nosotros.

Who says an established canine can’t learn new tricks?

We took the modern wolf in sheep’s clothing and gave it a brand-new bag of high-power, high-tech tricks.

Introducing Druid E.  The proportionally sized, full-power e-MTB lineup we’ve all been waiting for. Available in two styles: Druid LitE and Druid CorE. Both equipped with the revolutionary Avinox drive system.  A 2.52 kg (5.5 lbs) package that delivers 100 Nm of max continuous torque (120 Nm on boost), 850 W peak power (1,000 W on boost), the ability to run 600 Wh or 800 Wh batteries, and the fastest charging available on the market.

Finally, a proportionally sized e-MTB that effortlessly shuttles you to the top of any climb and delivers the class-defying descending prowess you know and love from Forbidden’s high-pivot Trifecta suspension platform. A bike you’ll actually love riding down as much as you do on the way up.

Intended Use

All Mountain

Suspension

150mm Rear / 160mm Front

Wheel Size

Mixed Wheel (MX)

Motor | Battery

Avinox M1 105 Nm 850 W | 800 Wh

SPECS:

Druid CorE Specs


  Find a dealer Find a dealer Find a dealer
  Druid CorE 1 Druid CorE 2 Druid CorE 3
FRAME Druid E Full Carbon - 150mm Travel Druid E Full Carbon - 150mm Travel Druid E Full Carbon - 150mm Travel

  High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings High-Modulus Carbon Fiber | Trifecta V3 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings
FORK RockShox Zeb Ultimate RockShox Zeb Select+ RockShox Zeb Select+

  160mm Travel | Charger 3 RC2 W/ButterCup | Debonair + | Rebound, HSC/LSC Adjust | Pressure Relief Valves | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black 160mm Travel | Charger 3.1 RCT | Debonair + | Rebound HSC/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black 160mm Travel | Charger 3.1 RCT | Debonair + | Rebound HSC/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black

REAR SHOCK RockShox Vivid Ultimate RockShox Vivid Select+ RockShox Vivid Select+

  TouchDown | RC2T Damper | Rebound, HSC LSC Adjust | Threshold Lever | Bearing Adapter Eyelets | R54 C26 w/ Hydraulic Bottom Out | 210x55mm TouchDown | RC2 | Threshold Lever | Bearing Adapter Eyelets | R45 C26 Tune w/ Hydraulic Bottom Out | 210x55mm TouchDown | RC2 | Threshold Lever | Bearing Adapter Eyelets | R45 C26 Tune w/ Hydraulic Bottom Out | 210x55mm

HEADSET FSA Orbit ZS Headset FSA Orbit ZS Headset FSA Orbit ZS Headset

  SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race SHIS: ZS44/28.6|ZS56/40 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race

GRIPS Forbidden Forbidden Forbidden

  128mm length | Single Sided Lock-On | Black 128mm length | Single Sided Lock-On | Black 128mm length | Single Sided Lock-On | Black

HANDLE BARS OneUp Alloy  OneUp Alloy  Forbidden

  800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore | 7075 Aluminum / Black 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore | 7075 Aluminum / Black 800mm Width | S1-S2:22.5 / S3-S4:38mm Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Black

STEM OneUp  OneUp  Forbidden

  40mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum 40mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum 40mm Length | 35mm Bar Clamp | Black

SEAT POST OneUp Dropper Post OneUp Dropper Post TranzX +RAD Travel Adjust Dropper

  31.6mm | Size Specific Travel S1:150mm / S2:180mm / S3:210mm / S4:240mm 31.6mm | Size Specific Travel S1:150mm / S2:180mm / S3:210mm / S4:240mm 31.6mm | Size Specific Travel S1:150mm / S2:170mm / S3:200mm / S4:230mm

SEAT POST REMOTE OneUp MMX UFT Lever OneUp MMX UFT Lever TranzX GLS

  Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote Aluminum Remote | Oversized Bearing | MatchMaker X Integrated Dropper Remote Aluminum Remote | Bearing | MatchMaker X Integrated Dropper Remote

SEAT POST CLAMP Forbidden Forbidden Forbidden

  7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized

SADDLE Fizik Terra Aidon X5 Fizik Terra Aidon X5 Forbidden

  145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black 143mm Width | Atmos Shaping | Cro-Mo Rail | Black

FRONT BRAKE SRAM Maven Ultimate 4-Piston SRAM Maven Silver 4-Piston SRAM Maven 4-Piston

  Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | Reach Adjustment | Organic Pads

FRONT BRAKE ROTOR SRAM HS2 - 200mm SRAM Centerline - 200mm SRAM Centerline - 200mm

  6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness

REAR BRAKE SRAM Maven Ultimate 4-Piston SRAM Maven Silver 4-Piston SRAM Maven 4-Piston

  Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | Reach Adjustment | Organic Pads

REAR BRAKE ROTOR SRAM HS2 - 200mm SRAM Centerline - 180mm SRAM Centerline - 200mm

  6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness 6-Bolt | 2.0mm Thickness

REAR SHIFTER SRAM Pod Rocker SRAM Pod Rocker SRAM Eagle 90

  With MMX Clamp | AXS Controller | Rocking Actuation With MMX Clamp | AXS Controller | Rocking Actuation With MMX Clamp | Single Click | Two Button Design

REAR DERAILLEUR SRAM X0 AXS T-Type 12speed SRAM GX AXS T-Type 12speed SRAM Eagle 90 T-Type 12speed

  Hangerless Interface | Overload Clutch | Replaceable Skid Plates Hangerless Interface | Overload Clutch | Replaceable Skid Plates Hangerless Interface | Replaceable Skid Plates

CASSETTE SRAM X0 T-Type 10-52T 12speed SRAM Eagle 70 T-Type 10-52T 12speed SRAM Eagle 70 T-Type 10-52T 12speed

  12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T 12speed | HG Fit | 10-12-14-16-18-21-24-28-32-38-44-52T

CHAIN SRAM GX Transmission Flattop - 12speed SRAM GX Transmission Flattop - 12speed SRAM GX Transmission Flattop - 12speed

  12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126

CRANKSET Praxis EC-Type 2 Alloy Praxis EC-Type 2 Alloy Praxis EC-Type 2 Alloy

  150mm | SRAM 34T Chainring | 55mm Chainline | Black 150mm | SRAM 34T Chainring | 55mm Chainline | Black 150mm | SRAM 34T Chainring | 55mm Chainline | Black

PEDALS Not included Not included Not included

UPPER CHAIN GUIDE Forbidden Race Guide Forbidden Race Guide Forbidden Race Guide

LOWER CHAIN GUIDE

BOTTOM BRACKET Avinox  Avinox  Avinox

  ISIS Interface ISIS Interface ISIS Interface

FRONT HUB Crank Brothers Crank Brothers Novatec

  110x15mm | 28-Hole | 6-Bolt | Black Anodized 110x15mm | 28-Hole | 6-Bolt | Black Anodized 110x15mm | 32Hole | 6-Bolt | Black Anodized

FRONT AXLE Maxle Stealth Maxle Stealth Maxle Stealth

  Included With Fork Included With Fork Included With Fork

REAR HUB Crank Brothers Crank Brothers DT Swiss 370 Hybrid

  Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Decal Ratchet Internals | HG Driver | 148x12mm | 32-Hole | 6-Bolt |

REAR AXLE SRAM 180 x 1.0mm Axle UDH SRAM 180 x 1.0mm Axle UDH SRAM 180 x 1.0mm Axle UDH

SPOKES Sapim CX Ray/Race  Sapim Race Pillar Racing Spoke

  Front: CX Ray 2.0/0.9/2.2/2.0mm / Rear: Race 2.0/1.25/2.25/2.0mm | Aero | Black ED Coated Stainless | Black Brass 14mm Nipples Race 2.0/1.8/2.0mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples 2.0/2.0/2.3mm | Double Butted | Black ED Coated Stainless | Black Brass 14mm Nipples

RIMS Crankbrothers Synthesis - E-Bike - Carbon Crankbrothers Synthesis - E-Bike - Alloy Race Face ARC OFFSET

  Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics Front 31.5mm / Rear 29.5mm Internal Width | Tubeless Ready | Black with Grey Graphics ARC HD 30 29" Front / ARC HD 30 27.5" Rear | 30mm Internal Width | | Black with Grey Graphics

FRONT TIRE Maxxis High Roller - 3C MaxxGrip - EXO+ Maxxis High Roller - 3C MaxxGrip - EXO+ Maxxis High Roller - 3C MaxxGrip - EXO+

  29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO+ Casing 29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO+ Casing 29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO+ Casing

REAR TIRE Maxxis Minion DHR2 - 3C MaxxTerra - DD Maxxis Minion DHR2 - 3C MaxxTerra - DD Maxxis Minion DHR2 - 3C MaxxTerra - DD

  27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DD Casing 27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DD Casing 27.5 x 2.5 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DD Casing

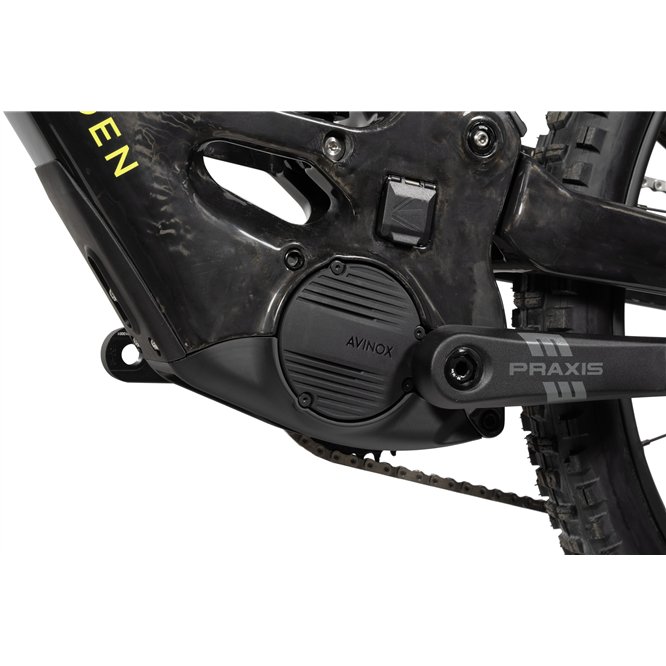

MOTOR Avinox M1  Avinox M1  Avinox M1

  Avinox M1 Drive Unit: 105 N·m | Avinox Screen: 2-inch OLED Control Display | Avinox Wireless Controllers: Right and left sides Avinox M1 Drive Unit: 105 N·m | Avinox Screen: 2-inch OLED Control Display | Avinox Wireless Controllers: Right and left sides Avinox M1 Drive Unit: 105 N·m | Avinox Screen: 2-inch OLED Control Display | Avinox Wireless Controllers: Right and left sides

BATTERY Avinox Avinox Avinox

  Avinox Integrated Li-ion Battery: 800Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 22.3 Ah Avinox Integrated Li-ion Battery: 800Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 22.3 Ah Avinox Integrated Li-ion Battery: 800Wh | Voltage 35.9 V | Protection Rating IP56 | Capacity 22.3 Ah

Included Avinox 168W Charger Avinox 168W Charger Avinox 168W Charger

  Approx. 5 h 50 min (0–100%)approx. 4 h 28 min (0–75%) Approx. 5 h 50 min (0–100%)approx. 4 h 28 min (0–75%) Approx. 5 h 50 min (0–100%)approx. 4 h 28 min (0–75%)

Included AXS Extension Cord AXS Extension Cord Stans Sealant - 200ml

Included Stans Sealant - 200ml Stans Sealant - 200ml

 GEOMETRY





Fork Size 160mm S1 S2 S3 S4
A Reach 430 447 467 487
B Stack 628 649 662 676
C Hori. Top Tube Length 578 599 622 646
D Seat Tube Length 400 420 440 470
E Seat Tube Angle (Effective) 76.75 76.75 76.75 76.75
F Seat Tube Angle (Actual) 70.8 72.7 74.5 76
G Head Tube Length 100 123 138 153
H Head Tube Angle 64 64 64 64
I Front Center 767 794 820 847
J Rear Center 427 442 456 471
K Wheel base 1194 1235 1276 1317
L BB Drop -25 -25 -25 -25
M BB Height 335.8 335.8 335.8 335.8
N Stand Over 745 745 745 745
O Fork Length 576 576 576 576
P Fork Offset 44 44 44 44



One Ride

One of our core philosophies is that everyone who rides our bikes should experience a similar ride characteristic, regardless of your size or stature. To this end, we have put extra effort into our geometry and sizing and one of the major contributing factors behind a bike’s overall ride feel is its weight balance. The term ‘weight balance’ refers to the relationship between the rear-center and the front-center, and the resultant position of the rider’s center of gravity between the tire contact patches. How each tire is weighted, directly affects the grip characteristics of the bike.

This weight distribution will also have a profound effect on both the [bike’s] agility and its stability. Many brands talk about their bikes having “balanced geometry”, yet they only use a single rear-center (chainstay) measurement across all frame sizes. If the rear-center remains constant with each size while front-center change, then it stands to reason that each size [of bike] will see a different weight distribution and therefore a different ride characteristic. At Forbidden, in an effort to ensure a consistent ride experience across all sizes, we employ a scaled rear-center measurement for each individual frame size.



SIZING



FEATURES

01 Trifecta V3 Platform
02 Avinox Drive System
03 Touch Screen and Controls
04 AXS Extension Cord Compatible
05 Carbon Rocker Link
06 Idler Pulley
07 Custom Frame Protection
08 Waterbottle Fitment
