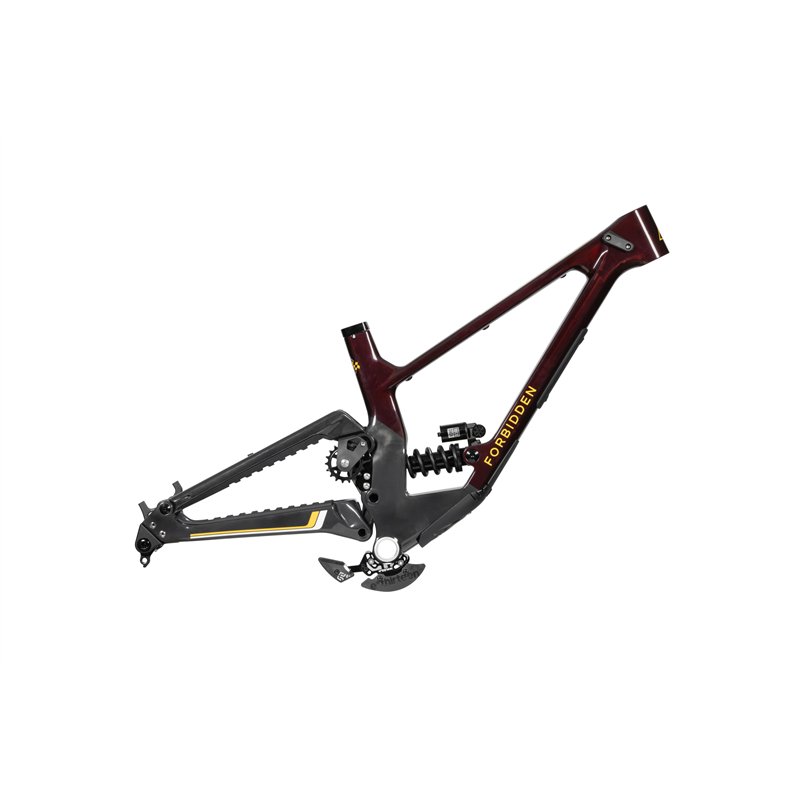

FORBIDDEN SUPERNOUGHT FRAMEKIT

The Supernought is designed and built for a single purpose: Get you down the hill faster. 205mm Rear / 200mm Front. Full 29er or Mixed (MX).

4.299,00 €



Envío gratuito A partir de 59 euros recibe tu compra en casa sin gastos de transporte por MRW en 24h.



Pago seguro Tarjeta de Crédito, Bizum o PayPal, con certificado de servidor seguro.



Llámanos Para cualquier duda CONTACTA con nosotros.

The Supernought has been in the wild long enough to earn its name. It’s not a concept and it’s not here to be everything. It’s a dedicated downhill performance bike, refined around a single purpose: carrying more speed, with more control, in the roughest places you can point it.

Pair our most refined high pivot layout with 205mm of rear travel and the result is simple. The Supernought stays calm when the track turns violent. It carries momentum through roots, square edges, and braking bumps. It holds a line when the ground is trying to deflect you, and it keeps the bike working underneath you instead of reacting on top of it.

What happens next is on you. You brake later. You commit sooner. You choose lines that used to feel like a bad idea, then ride out the other side with a grin. No fluff. No filler. No compromises.



  • Intended Use

    DH Race

  • Suspension

    205mm Rear / 200mm Front

  • Wheel Size

    Full 29er or Mixed (MX)



SPECS:

  Supernought Framekit Supernought Tier 1 Supernought Tier 2

FRAME Supernought Full Carbon - 200mm Travel Supernought Full Carbon - 200mm Travel Supernought Full Carbon - 200mm Travel

  High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 83mm Threaded BSA Bottom Bracket High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 83mm Threaded BSA Bottom Bracket High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 83mm Threaded BSA Bottom Bracket

FORK   RockShox Boxxer Ultimate 200mm RockShox Boxxer Select 200mm

    200mm Travel | Charger 3.2 RC2 W/ButterCups | LinearXL | Rebound, HSC/LSC Adjust | Butter Wagon Tech | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black 200mm Travel | Delta RC| LinearXL | Rebound, HSC/LSC Adjust | Butter Wagon Tech | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black

REAR SHOCK Rockshox Vivid Coil Ultimate DH RockShox Vivid Coil Ultimate DH RockShox Vivid Coil Select

  RC2 | LinearXL | HSC/LSC | Rebound | Externally Adjustable Bottom Out | Bearing Adapter Eyelets | R55/C30 | 225x75mm RC2 | LinearXL | HSC/LSC | Rebound | Externally Adjustable Bottom Out | Bearing Adapter Eyelets | R55/C30 | 225x75mm RT | LinearXL | Rebound | 2 Position Compression | Bearing Adapter Eyelets | R55/C30 | 225x75mm

HEADSET   Cane Creek 40 Cane Creek 40

    ZS49|EC49 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race ZS49|EC49 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race

GRIPS   Forbidden  Forbidden

    135mm length | Single Sided Lock-On | Black 135mm length | Single Sided Lock-On | Black

HANDLE BARS   Burgtec Ride Wide DH Alloy Burgtec Ride Wide DH Alloy

    800mm Width | S1-S2:22.5mm / S3-S4:30mm Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Alloy 800mm Width | S1-S2:22.5mm / S3-S4:30mm Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Alloy

STEM   Burgtec Direct Mount  Burgtec Direct Mount

    45mm Length | 35mm Bar Clamp | Black Anodized 45mm Length | 35mm Bar Clamp | Black Anodized

SEAT POST   Burgtec Xpress Alloy  Burgtec Xpress Alloy

    31.6mm | Black Anodized 31.6mm | Black Anodized

SEAT POST REMOTE

SEAT POST CLAMP Forbidden Forbidden Forbidden

  7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized 7075 CNC Aluminum | 34.9mm | Black Anodized

SADDLE   Fizik Gravita Alpaca X5 Fizik Gravita Alpaca X5

    130mm Width | S Alloy Rail | Black 130mm Width | S Alloy Rail | Black

FRONT BRAKE   SRAM Maven Silver SRAM Maven Base

    Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | Reach Adjustment | Organic Pads

FRONT BRAKE ROTOR   SRAM HS2  SRAM Centerline

    200mm | 6-Bolt | 2.0mm Thickness 200mm | 6-Bolt | 2.0mm Thickness

REAR BRAKE   SRAM Maven Silver SRAM Maven Base

    Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads Stealth Body | Reach Adjustment | Organic Pads

REAR BRAKE ROTOR   SRAM HS2  SRAM Centerline

    200mm | 6-Bolt | 2.0mm Thickness 200mm | 6-Bolt | 2.0mm Thickness

REAR SHIFTER   SRAM POD Rocker SRAM GX DH

    MMX Clamp | AXS Controller | Rocking Actuation 7speed | MMX Clamp | Single Click | Two Button Design

REAR DERAILLEUR   SRAM XX DH T-Type SRAM GX DH

    Hangerless Interface | Overload Clutch | Replaceable Skid Plates X-Actuation | X-Horizon

CASSETTE   SRAM XX DH  SRAM PG-720

    12speed | XD Fit | 10-12-14-16-18-21-24T 12speed | XD Fit | 10-12-14-16-18-21-24T

CHAIN   SRAM X0 T-Type  SRAM PC1110

    12speed | Links = S1:114 / S2:116 / S3:118 / S4:120 12speed | Links = S1:114 / S2:116 / S3:118 / S4:120

CRANKSET   SRAM XX DH  SRAM Descendant DH Alloy

    150mm | SRAM 34T Alloy Chainring | 55mm Chainline 165mm | SRAM 34T Alloy Chainring | 55mm Chainline

PEDALS

UPPER CHAIN GUIDE Forbidden HD Guide Forbidden HD Guide Forbidden HD Guide

LOWER CHAIN GUIDE e.13 | LG1 Plus MRP MXg  e.13 LG1 Plus

  ISCG05 | 28-34T | DMB | Lower Roller Forbidden Custom Spec | 14T Roller ISCG05 | 28-34T | DMB | Lower Roller

BOTTOM BRACKET   SRAM DUB BSA 83 DH SRAM DUB BSA 83 DH

    28.99mm Spindle | DUB | Threaded BSA 83mm 28.99mm Spindle | DUB | Threaded BSA 83mm

FRONT HUB   Crankbrothers Synthesis DH  Crankbrothers Synthesis DH

    110x20mm | 28-Hole | 6-Bolt | Black Anodized 110x20mm | 28-Hole | 6-Bolt | Black Anodized

FRONT AXLE   Maxle Stealth Maxle Stealth

    6mm Hex Fitment 6mm Hex Fitment

REAR HUB   Crankbrothers Synthesis Ratchet Crankbrothers Synthesis Ratchet

    Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized

REAR AXLE Maxle Stealth Maxle Stealth Burgtec

  180x12mm | 5mm Hex Fitment 180x12mm | 5mm Hex Fitment 180x12mm | 5mm Hex Fitment

SPOKES   Sapim Race Sapim Race

    Front: 2.0/1.8/2.0mm / Rear: Race 2.0/1.8/2.0mm | Black ED Coated Stainless | Black Brass 14mm Nipples Front: 2.0/1.8/2.0mm / Rear: Race 2.0/1.8/2.0mm | Black ED Coated Stainless | Black Brass 14mm Nipples

RIMS   Crankbrothers Synthesis DH Alloy 2.0 Crankbrothers Synthesis DH Alloy 2.0

    Front 31.5mm / Rear 31.5mm Internal Width | Tubeless Ready | Black with Grey Graphics Front 31.5mm / Rear 31.5mm Internal Width | Tubeless Ready | Black with Grey Graphics

FRONT TIRE   Maxxis ASSEGAI  Maxxis ASSEGAI

    29 x 2.5 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | DH Casing 29 x 2.5 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | DH Casing

REAR TIRE   Maxxis DHRII  Maxxis DHRII

    27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing 27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DH Casing

Included SRAM Universal Derailleur Hanger Stans Sealant  Stans Sealant

    200mm 200mm

Included   SRAM AXS Powerpack

    1 Battery | USB Charger

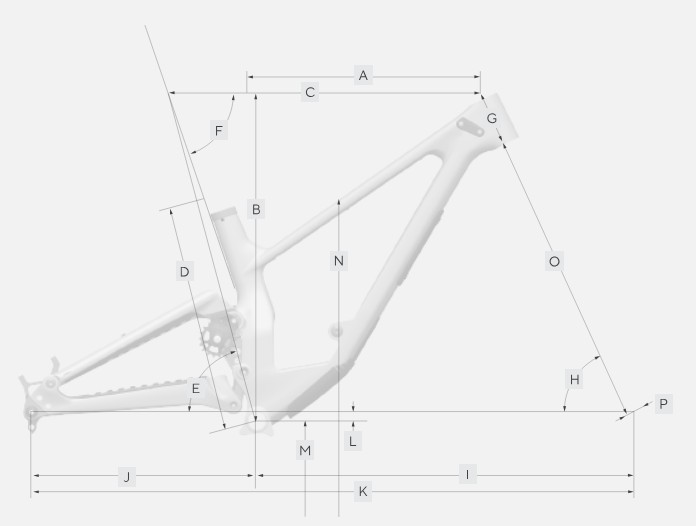

GEOMETRY




  Fork Size 200mm S1 S2 S3 S4
A Reach 420 443 466 488
B Stack 631 640 649 658
C Hori. Top Tube Length 580 604 629 654
D Seat Tube Length 400 420 440 470
E Seat Tube Angle (Effective) 75.8 75.8 75.8 75.8
F Seat Tube Angle (Actual) 68.9 71.0 72.8 74.3
G Head Tube Length 90 100 110 120
H Head Tube Angle 63.1 63.1 63.1 63.1
I Front Center 781 808 835 862
J Rear Center 431 446 460 475
K Wheel base 1212 1253 1295 1336
L BB Drop -10.6 -10.6 -10.6 -10.6
M BB Height 350 350 350 350
N Stand Over 750 760 769 777
O Fork Length 601 601 601 601
P Fork Offset 46 46 46 46



SIZING



Technical Info

  • Rear Shock (Framekit)

    Super Deluxe Coil Ultimate DH | Spring: S1=300lb, S2=350lb, S3=400lb, S4=450lbs

  • Fork Length (Max.)

    611mm

  • Shock Length (Eye - Eye)

    225mm

  • Recommended Fork Offset

    46mm, 48mm, 52mm

  • Shock Stroke

    75mm

  • Recommended Headset

    ZS49/28.6 EC49/30

  • Shock Hardware

    30x8mm Lower | Trunnion Upper

  • Rear Dropout Spacing (O.L.D.)

    148mm

  • Bottom Bracket

    83mm BSA Threaded

  • Chain Line

    56.5mm

  • Max Chain Ring

    S1: 34T S2: 34T S3: 36T S4: 38T

  • Seat Post Diameter

    31.6mm

  • Brake Mount

    200mm Post Mount

  • ISCG 05

    Lower Tabs Only

  • Max. Tire Size

    29” Tire = 2.4” (57mm at widest tread point) | 27.5” Tire = 2.6” (66mm at widest tread point)
