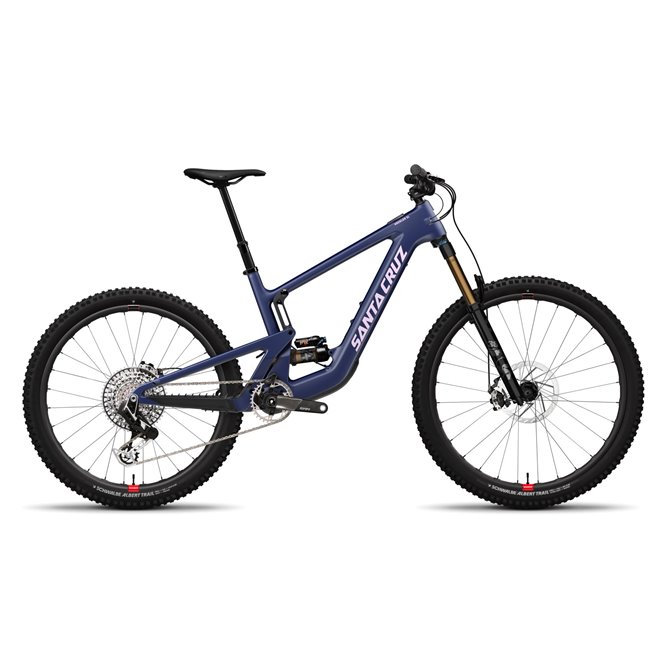

SANTA CRUZ Heckler SL CC X0 AXS RSV
Una ebike ligera, poderosa y sorprendente. Recorrido de 150 mm, ruedas mixtas y una geometría que la hace super manejable. Motor Fazua. Batería 430 Wh.
11.190,00 €
OLD PRICE
11.890,00 €
DTO.
700,00 €
Envío gratuito A partir de 59 euros recibe tu compra en casa sin gastos de transporte por MRW en 24h.
Pago seguro Tarjeta de Crédito, Bizum o PayPal, con certificado de servidor seguro.
Llámanos Para cualquier duda CONTACTA con nosotros.
A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.
Available in: C & CC Carbon
Wheel Size: MX
Front Travel: 160mm
Rear Travel: 150mm
Drive Unit: FAZUA RIDE 60
Battery Size: 430 Wh
| Horquilla | RockShox Lyrik Ultimate, 160mm |
|---|---|
| Amortiguador | RockShox Super Deluxe Ultimate, 210x55 |
| Cambio trasero | SRAM X0 Eagle AXS T-Type, 12spd |
| Mando cambio | SRAM AXS Pod Bridge |
| Bielas | Praxis eTor AL, 104BCD, 165mm |
| Cassette | SRAM X0 Eagle T-Type, 10-52t |
| Cadena | SRAM X0 Eagle T-Type, Flattop, 12spd |
| Frenos | SRAM Code Silver Stealth |
| Disco freno | SRAM HS2 200mm/200mm |
| Direccion | Cane Creek 40 IS Integrated |
| Manillar | Santa Cruz 35 Carbon Bar, 800mm |
| Potencia | Burgtec Enduro MK3, 42.5mm |
| Puños | Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar |
| Buje delantero | Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28htd> |
| Buje trasero | Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h |
| Llantas | Reserve Carbon 9" Front, 27.5" Rear |
| Guia cadena | OneUp Chainguide |
| Bateria | FAZUA 430 Wh Integrated Battery |
| Drive unit | FAZUA RIDE60 |
| Battery Charger | FAZUA Charger |
| Neumatico delantero | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
| Neumatico trasero | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Tija | OneUp V2 Dropper Post, 31.6 |
| Sillin | WTB Silverado Medium, Ti |
FAZUA RIDE 60
The tough, light, smooth carbon frame contains the 430 Wh battery and quiet, frictionless FAZUA RIDE 60 motor.
Power at your fingertips
With three power modes available at the touch of the ring controller you choose how much push you want and how much range you get.
Customize via app
Customize your ride modes and access more information via the FAZUA app.
Heckler SL Frame Specifications
| Wheel Size | MX |
| Max Tire | 2.6" |
| Fork Travel | 160mm |
| Fork Axle-to-Crown | 571mm |
| Fork Offset | 44mm |
| Rear Spacing | 148mm |
| UDH Compatible | Yes |
| Front Derailleur | No |
| Headset | IS 41 / IS52 |
| Bottom Bracket | Fazua DU w/ E-TOR spindle |
| Max Chainring | 36t |
| Brake | PM 200mm |
| Max Rotor | 220mm |
| Shock Dimensions | 210x55 |
| Shock Mounting Bushing Front | 30x8 |
| Shock Mounting Bushing Rear | 30x8 |
Geometry
All units are in millimeters or degrees.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | hi/lo | 435/432.4 | 460/457.4 | 480/477.5 | 500/497.4 | 525/522.5 |
| Stack | 614.9/616.8 | 624/625.8 | 633/634.9 | 651/653 | 664.5/666.5 |
| Head Tube Angle | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 |
| Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| Front Center | 766.1/765.9 | 795.4/795.3 | 819.7/819.6 | 848.4/848.3 | 879.9/879.8 |
| BB Height | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 |
| Wheelbase | 1209.1/1209.7 | 1238.4/1239.1 | 1262.7/1263.4 | 1294.4/1295.1 | 1329.9/1330.5 |
| Rear Center | 443/443.8 | 443/443.8 | 443/443.8 | 446/446.8 | 450/450.7 |
| Head Tube Length | 100 | 110 | 120 | 140 | 155 |
| Top Tube Length | 569.2/579.6 | 602.7/602.9 | 620.6/621.5 | 641.8/642.7 | 669.1/670 |
| Seat Tube Angle | 76.8/76.6 | 77.1/76.9 | 77.5/77.2 | 77.7/77.5 | 77.8/77.5 |
| Standover Height | 720.1/716.2 | 733/728.8 | 733.4/729.3 | 731.7/731.6 | 741/738.6 |
Frame Sizing
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
The Heckler SL is available in sizes extra small - extra extra large (S-XXL).
