SANTA CRUZ Heckler SL C S
search

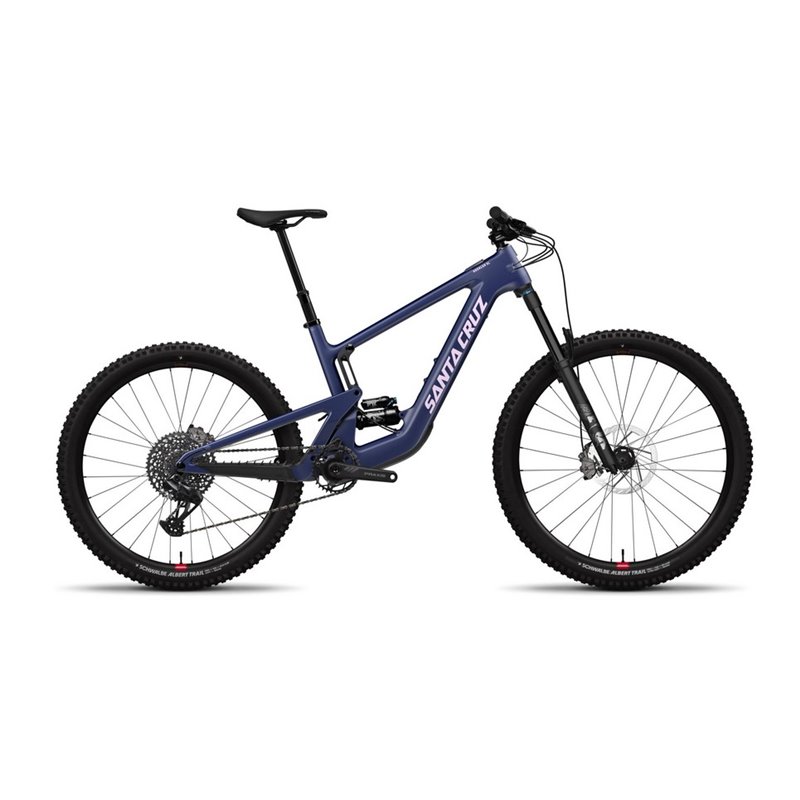

SANTA CRUZ Heckler SL C S

Una ebike ligera, poderosa y sorprendente. Recorrido de 150 mm, ruedas mixtas y una geometría que la hace super manejable. Motor Fazua. Batería 430 Wh.

8.390,00 € OLD PRICE 8.890,00 € DTO. 500,00 €



Envío gratuito A partir de 59 euros recibe tu compra en casa sin gastos de transporte por MRW en 24h.



Pago seguro Tarjeta de Crédito, Bizum o PayPal, con certificado de servidor seguro.



Llámanos Para cualquier duda CONTACTA con nosotros.

A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

Available in: C & CC Carbon
Wheel Size: MX
Front Travel: 160mm
Rear Travel: 150mm
Drive Unit: FAZUA RIDE 60
Battery Size: 430 Wh




Peso 19.31kg
Horquilla RockShox Lyrik Select+, 160mm
Amortiguador RockShox Super Deluxe Select+ 210x55
Cambio trasero SRAM GX Eagle, 12spd
Mando cambio SRAM GX Eagle Single Click, 12spd
Bielas Praxis eTor AL, 104BCD, 165mm
Cassette XG1275 Eagle, 12spd, 10-52t
Cadena SRAM GX Eagle, 12spd
Frenos SRAM Code R
Disco freno Avid Centerline 200mm/200mm
Direccion Cane Creek 40 IS Integrated
Manillar Burgtec Alloy Bar
Potencia Burgtec Enduro MK3, 42.5mm
Puños Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Buje delantero DT Swiss 370, 110x15, Torque Cap, 6-Bolt, 28h
Buje trasero DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Llantas RaceFace AR Offset 30 29" Front, 27.5" Rear
Guia cadena OneUp Chainguide
Bateria FAZUA 430 Wh Integrated Battery
Drive unit FAZUA RIDE60
Battery Charger FAZUA Charger
Neumatico delantero Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO
Neumatico trasero Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Tija OneUp V2 Dropper Post, 31.6
Sillin WTB Silverado Medium, CroMo



FAZUA RIDE 60

The tough, light, smooth carbon frame contains the 430 Wh battery and quiet, frictionless FAZUA RIDE 60 motor.

Power at your fingertips

With three power modes available at the touch of the ring controller you choose how much push you want and how much range you get.

Customize via app

Customize your ride modes and access more information via the FAZUA app.



Heckler SL Frame Specifications

Wheel Size MX
Max Tire 2.6"
Fork Travel 160mm
Fork Axle-to-Crown 571mm
Fork Offset 44mm
Rear Spacing 148mm
UDH Compatible Yes
Front Derailleur No
Headset IS 41 / IS52
Bottom Bracket Fazua DU w/ E-TOR spindle
Max Chainring 36t
Brake PM 200mm
Max Rotor 220mm
Shock Dimensions 210x55
Shock Mounting Bushing Front 30x8
Shock Mounting Bushing Rear 30x8



Geometry

All units are in millimeters or degrees.



  S M L XL XXL
Reach | hi/lo 435/432.4 460/457.4 480/477.5 500/497.4 525/522.5
Stack 614.9/616.8 624/625.8 633/634.9 651/653 664.5/666.5
Head Tube Angle 64.3/64 64.3/64 64.3/64 64.3/64 64.3/64
Seat Tube Length 380/380 405/405 430/430 460/460 500/500
Front Center 766.1/765.9 795.4/795.3 819.7/819.6 848.4/848.3 879.9/879.8
BB Height 344/340.7 344/340.7 344/340.7 344/340.7 344/340.7
Wheelbase 1209.1/1209.7 1238.4/1239.1 1262.7/1263.4 1294.4/1295.1 1329.9/1330.5
Rear Center 443/443.8 443/443.8 443/443.8 446/446.8 450/450.7
Head Tube Length 100 110 120 140 155
Top Tube Length 569.2/579.6 602.7/602.9 620.6/621.5 641.8/642.7 669.1/670
Seat Tube Angle 76.8/76.6 77.1/76.9 77.5/77.2 77.7/77.5 77.8/77.5
Standover Height 720.1/716.2 733/728.8 733.4/729.3 731.7/731.6 741/738.6



Frame Sizing

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

The Heckler SL is available in sizes extra small - extra extra large (S-XXL).
