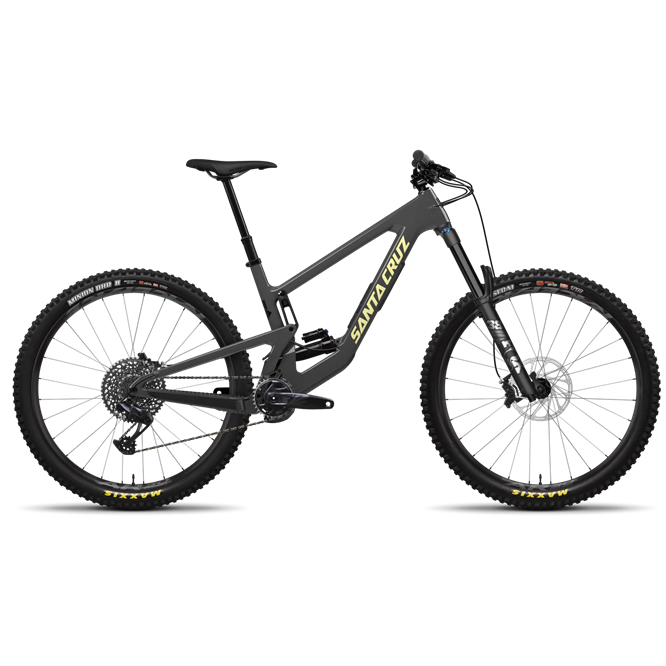

SANTA CRUZ Megatower C S

Ruedas de 29”, 170 / 165mm de recorrido y cuadro de carbono. Ángulo del tubo del asiento empinado y geometría específica según talla que proporciona una gran capacidad de pedaleo. Perfecta para Enduro y Bike Park.

6.390,00 €



Envío gratuito A partir de 59 euros recibe tu compra en casa sin gastos de transporte por MRW en 24h.



Pago seguro Tarjeta de Crédito, Bizum o PayPal, con certificado de servidor seguro.



Llámanos Para cualquier duda CONTACTA con nosotros.

A downhill bike that goes everywhere

Seriously. The Megatower’s big wheels, long travel, and tough carbon fiber chassis delivers the high-speed security traits of a downhill bike. Yet the relatively-steep seat tube angle and size-specific geo maintain the Mega’s mega pedaling ability—elevating its reputation as the perfect choice for big gravity rides and DH park laps.

Características

Available in: Carbon C and CC
Wheel Size: 29
Front Travel: 170mm
Rear Travel: 165mm



KITS

Frame
Material Carbon C
Features -
Suspension
Fork FOX 38 Float Performance, 170mm
Shock RockShox Super Deluxe Select+, 230x62.5
Drivetrain
Rear Derailleur SRAM GX Eagle, 12spd
Shifter SRAM GX Eagle, 12spd
Crankset SRAM GX Eagle 148 DUB 32t
Cassette SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Brakes
Brakes SRAM Code R
Front Rotor Avid Centerline, 200mm
Rear Rotor Avid Centerline, 200mm
Cockpit
Handlebars Burgtec RideWide Alloy
Stem Burgtec Enduro MK3, 42mm
Grips Santa Cruz Bicycles House Grips
Headset Cane Creek 40 IS Integrated Headset
Seatpost OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6
Saddle WTB Silverado, CroMo
Wheels
Front Rim RaceFace AR Offset 30, 29"
Front Hub DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+
Rear Rim RaceFace AR Offset 30, 29"
Rear Hub DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Tire Maxxis Minion DHR II 29"x2.4"WT, 3C MaxxTerra, EXO+
Valves -
Specs
Headset Integrated (IS41/52)
Seat Post Diameter 31.6mm
Seat Clamp Diameter 36.4mm
Rear Brake Mount 200mm PM
Bottom Bracket Shell 73mm Threaded
Max Tire Clearance 2.5"
Max Chainring Size 36t
Water Bottle Mounts 1
Shock Length 230mm
Shock Stroke 62.5mm
Shock Bushing Sizes 30x8
Shock Bushing Sizes 30x8
Shock Mounting Hardware Upper -
Shock Mounting Hardware Lower -
Fork Offset 44mm



Design Details:

Glovebox

Place everything you need for a ride beneath the reassuringly high-quality latch and panel in the downtube, including your driving gloves. The Glovebox also comes with a Tool Wallet and Tube Purse, two refined pouches for keeping your essentials close to hand.

Full carbon C and CC frame options

While both versions of our carbon frames are made in our own factory, are just as strong and stiff as one another, and have a lifetime warranty, there are a couple of differences between the two. CC frames use the very best materials and production processes available, while our C frames add on a little more weight for a little less $.

Steeper seat tube angle

The steep seat tube angle puts you in the right place to scale the steepest pitches to get to the wildest descents. Even better, it gets progressively steeper as the sizes get larger so everyone sits in the right spot.

165mm of VPP™ travel

A relatively-low leverage ratio not only makes setup easier but delivers a more damped, controlled feel across the travel range.

Coil and water compatibility

Even with a lower-link flip chip and the option to run large-body shocks, like a coil, you’re still able to fit a water bottle inside the front triangle.

Longer travel?

165mm of travel comes standard, but if you choose to run a shock with a longer, 65mm stroke, you can bump it up to 170mm.

Details matter

The frame details are completed with a neat mud flap that protects the rear shock, a rubberized downtube protector that shrugs off strikes, and tidy cable routing within the frame and swingarm.

Proportional geo

The Megatower's chainstay length is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.

Full size range

From size small to XXL, no one misses out on the Megatower.



Tallas:

S 155 — 165 cm
M 165 — 175 cm
L 175 — 185 cm
XL 185 — 193



Tabla de Geometría:

High

HI S M L XL XXL
Reach 430mm 455mm 475mm 495mm 520mm
Stack 616mm 625mm 638mm 656mm 670mm
Head Tube Angle 63.8° 63.8° 63.8° 63.8° 63.8°
Seat Tube Length 380mm 405mm 430mm 460mm 500mm
Front Center 770mm 799mm 826mm 855mm 886mm
BB Height 346mm 346mm 346mm 346mm 346mm
BB Drop 27mm 27mm 27mm 27mm 27mm
Wheelbase 1206mm 1236mm 1266mm 1298mm 1333mm
Rear Center 436mm 437mm 440mm 443mm 447mm
Head Tube Length 90mm 100mm 115mm 135mm 150mm
Top Tube Length 570mm 594mm 613mm 637mm 666mm
Seat Tube Angle 77.24° 77.42° 77.8° 77.8° 77.8°
Standover Height 709mm 716mm 723mm 722mm 724mm



Low

LOW S M L XL XXL
Reach 427mm 452mm 472mm 492mm 517mm
Stack 618mm 627mm 640mm 658mm 672mm
Head Tube Angle 63.5° 63.5° 63.5° 63.5° 63.5°
Seat Tube Length 380mm 405mm 430mm 460mm 500mm
Front Center 770mm 799mm 826mm 855mm 886mm
BB Height 342.5mm 342.5mm 342.5mm 342.5mm 342.5mm
BB Drop 30mm 30mm 30mm 30mm 30mm
Wheelbase 1206mm 1237mm 1266mm 1298mm 1334mm
Rear Center 437mm 438mm 441mm 444mm 448mm
Head Tube Length 90mm 100mm 115mm 135mm 150mm
Top Tube Length 570mm 595mm 613mm 638mm 667mm
Seat Tube Angle 77.0° 77.2° 77.5° 77.5° 77.5°
Standover Height 705mm 712mm 718mm 717mm 720mm
