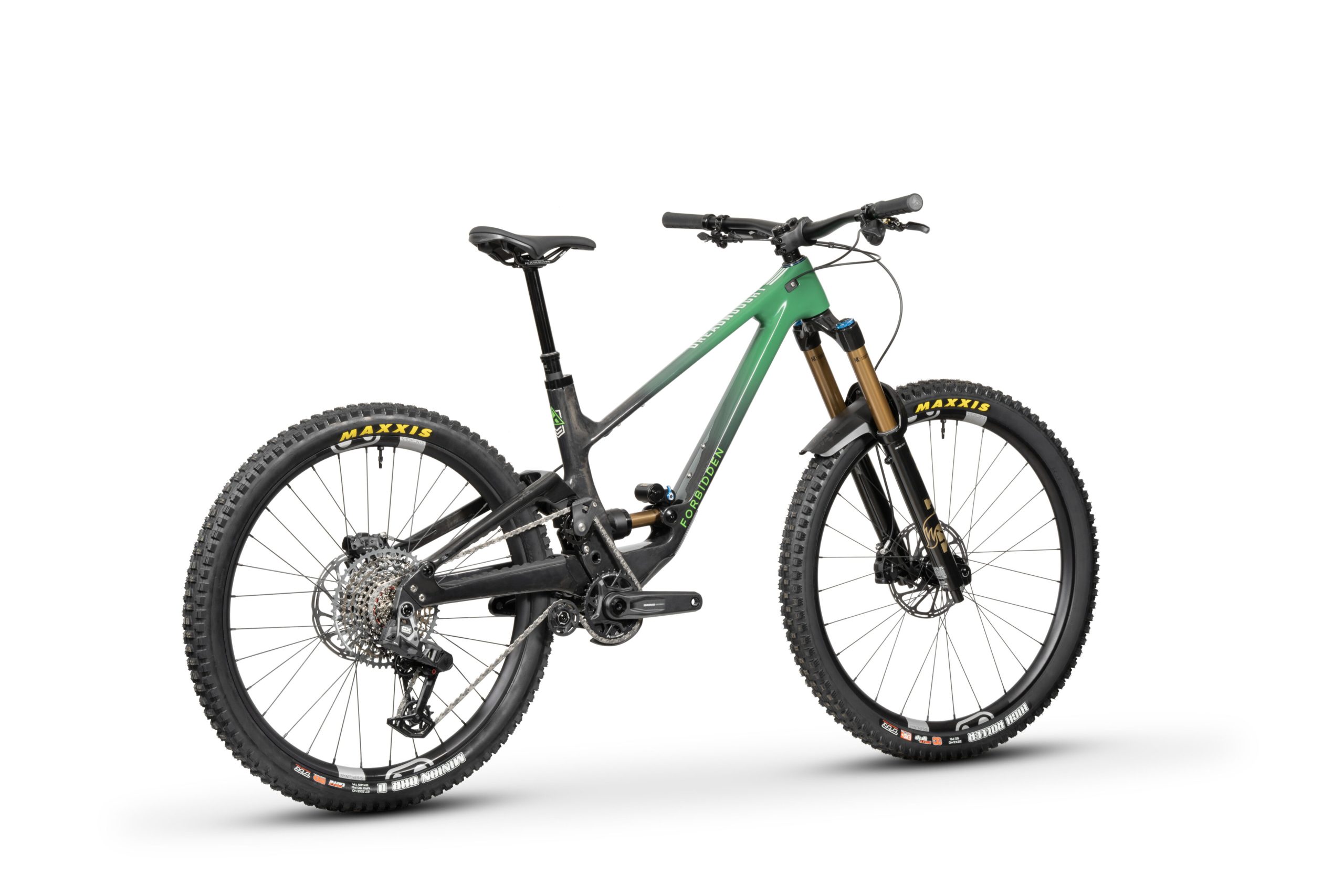

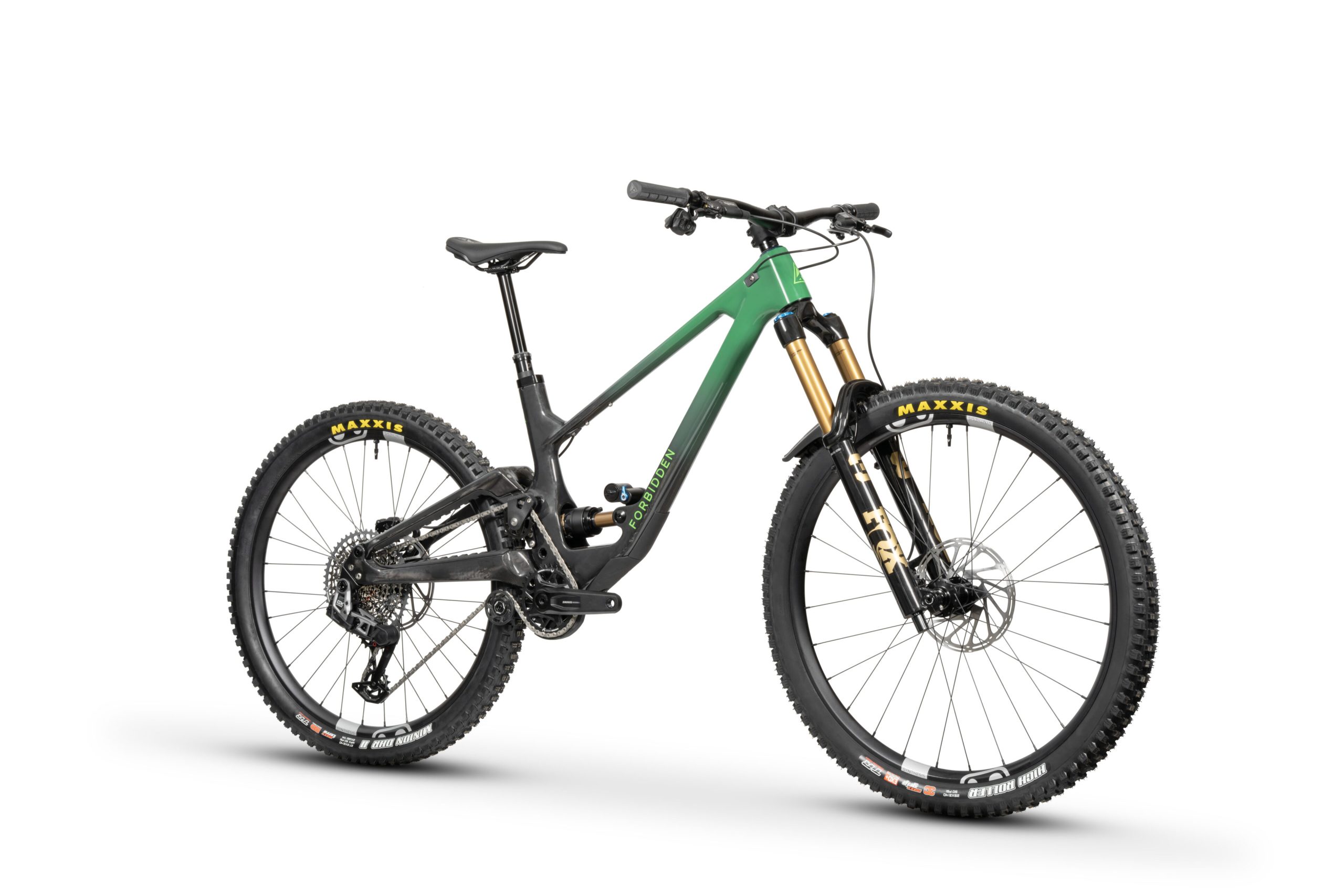

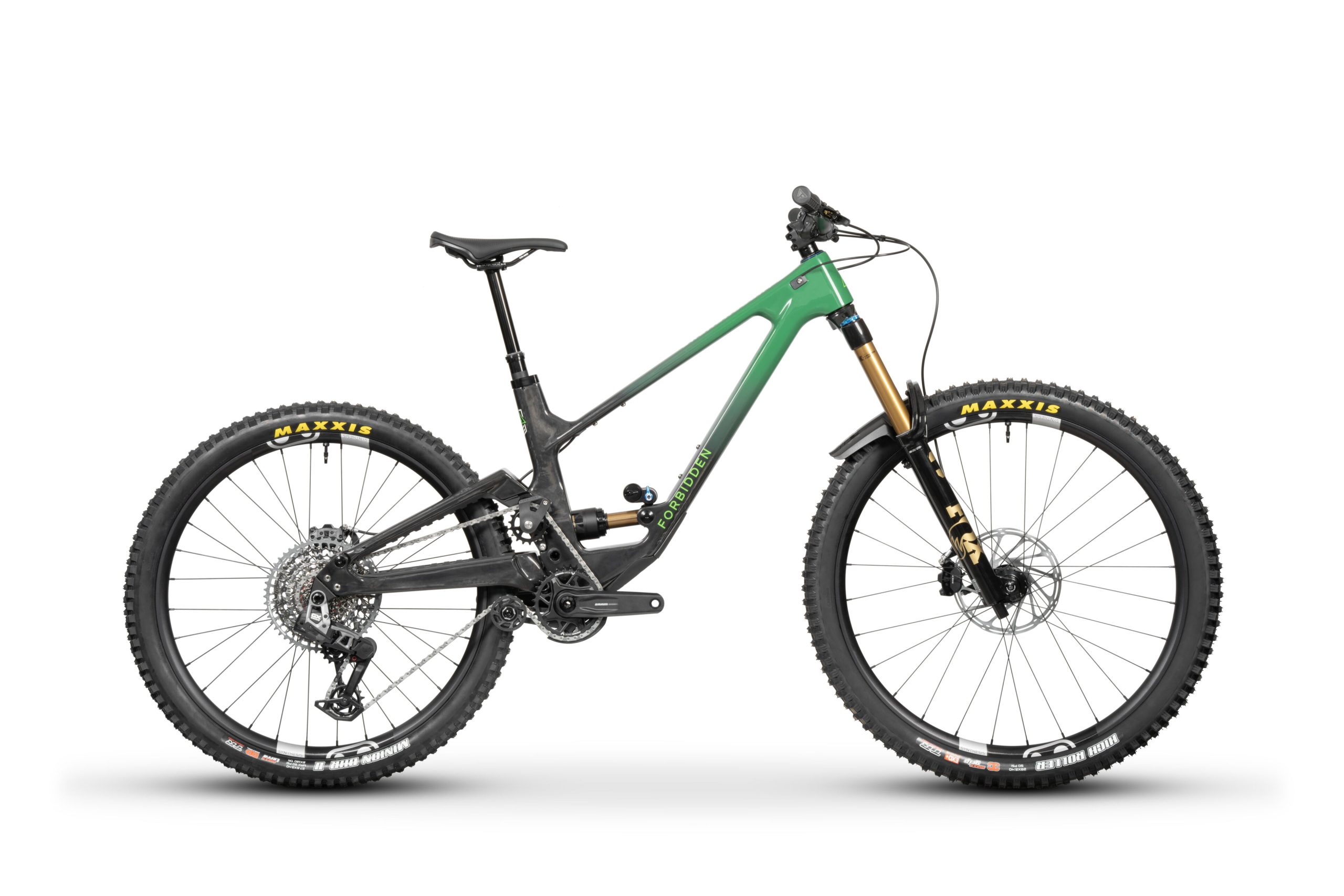

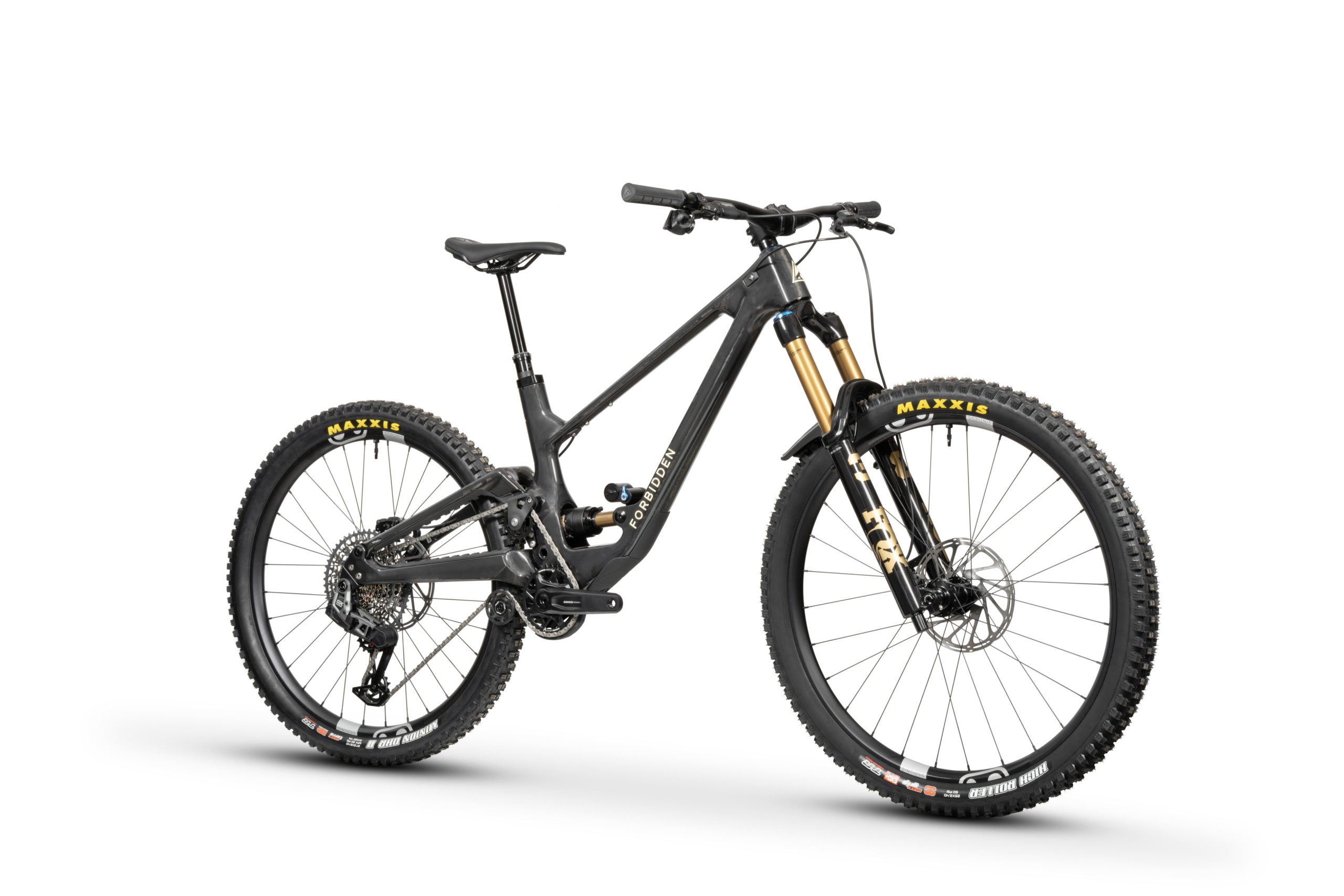

FORBIDDEN 2026 Dreadnought Tier 2 es una bicicleta de enduro. Plataforma de largo recorrido, geometría proporcional y configuración orientada a terreno agresivo. Montaje con Fox 38 Factory, Fox Float X2 factory, SRAM GX T-Type.
Disponible en tallas S1, S2, S3, S4 y en Sixteen Stone / Soylent Green. Disponibilidad real pendiente de confirmación por NSMTB.
| Cuadro y suspensión | |
|---|---|
| Cuadro | Dreadnought V2 Full Carbon – 160mm Travel | High-Modulus Carbon Fiber | Trifecta High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings |
| Horquilla | Fox 38 Factory | 170mm Travel | Grip X2 | Float Evol | HSR/LSR | HSC/LSC | 44mm Offset | 20x110mm Thru-Axle | Black |
| Amortiguador | Fox Float X2 factory | Float Evol | HSR/LSR | HSC/LSC | 2 Position Threshold Lever | CL55/RL60 Tune | 185x50mm |
| Dirección | Cane Creek 40 | ZS44/ZS56 | Sealed Cartridge Bearings | 6000 Series Alloy Cups And Materials | Sealed Steel Crown Race |
| Puesto de conducción | |
| Puños | Forbidden | 135mm length | Single Sided Lock-On | Black |
| Manillar | OneUp Alloy | 800mm Width | S1-S2:20mm / S3-S4:35mm Rise | 8° Backsweep 5° Upward | 35mm Bar Bore | Black |
| Potencia | OneUp Stem | 42mm Length | 35mm Bar Clamp | Black | Forged 6061 Aluminum |
| Tija | OneUp Dropper Post V3 | 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
| Mando de tija | OneUp MMX V3 | CNC Aluminum | Sealed Bearing | Black Anodized |
| Abrazadera de tija | Forbidden | 7075 CNC Aluminum | 34.9mm | Black Anodized |
| Sillín | Forbidden | 143mm Width | Atmos Shaping | Cro-Mo Rail | Black |
| Frenos | |
| Freno delantero | SRAM Maven Silver | Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads |
| Disco delantero | SRAM Centerline | 200mm | 6-Bolt | 2.0mm Thickness |
| Freno trasero | SRAM Maven Silver | Stealth Body | SwingLink | Reach & Contact Adjustment | Organic Pads |
| Disco trasero | SRAM Centerline | 200mm | 6-Bolt | 2.0mm Thickness |
| Transmisión | |
| Mando de cambio | SRAM POD Rocker | MMX Clamp | AXS Controller | Rocking Actuation |
| Cambio trasero | SRAM GX T-Type | Hangerless Interface | Overload Clutch | Replaceable Skid Plates |
| Casete | SRAM XS-1275 | 12speed | XD Fit | 10-12-14-16-18-21-24-28-32-38-44-52T |
| Cadena | SRAM GX T-Type | 12speed | Links = S1:124 / S2:126 / S3:128 / S4:130 |
| Bielas y plato | SRAM S1000 | 160mm | SRAM 32T Alloy Chainring | 55mm Chainline |
| Pedales | Not included |
| Guía de cadena superior | Forbidden V2 Race Guide Kit | V2 18T Steel Idler Pulley – BOSL Enduro Bearing |
| Guía de cadena inferior | MRP MXg | Custom 2-Bolt Fixed Backplate | ISCG 05 Standard |
| Pedalier | SRAM DUB Wide | 28.99mm Spindle | DUB | Threaded BSA |
| Ruedas | |
| Buje delantero | Crankbrothers Synthesis Enduro | 110x15mm | 28-Hole | 6-Bolt | Black Anodized |
| Eje delantero | Maxle Stealth | 6mm Hex Fitment |
| Buje trasero | Crankbrothers Synthesis Enduro Ratchet | Ratchet Internals | XD Driver | 148x12mm | 32hole | 6-Bolt | Black Anodized |
| Eje trasero | Maxle Stealth | 180x12mm | 5mm Hex Fitment |
| Radios | Sapim Race | Front: 2.0-0.9-1.65-2.0mm / Rear: 2.0-0.9-1.65-2.0mm | Black ED Coated Stainless | Black Brass 14mm Nipples |
| Llantas | Crankbrothers Synthesis Enduro 2.0 | Front 31.5mm / Rear 31.5mm Internal Width | Tubeless Ready | Black with Grey Graphics |
| Neumático delantero | Maxxis High Roller | 29 x 2.4 | 3C MaxxGrip Rubber Compound | 60tpi | Folding | Tubeless Ready | EXO+ Casing |
| Neumático trasero | Maxxis DHRII | 27.5 x 2.4 | 3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | DD Casing |
| Información adicional | |
| Included | SRAM AXS Powerpack | 1 Battery | USB Charger |
| Información técnica del cuadro | |
| Longitud máxima de horquilla (eje a corona) | 593.7mm |
| Offset recomendado | 44mm |
| Medidas y herrajes del amortiguador | 205 x 60mm (30mm x 8mm hardware) |
| Dirección S.H.I.S. | ZS44/28.6 ZS56/40 |
| Ancho del eje trasero | 148mm |
| Pedalier | 73mm BSA Threaded |
| Chain line (cl) | 52mm or 55mm |
| Plato máximo por talla | "52mm CL = S1: 30T S2: 32T S3: 34T S4: 36T 55mm CL = S1: 32T S2: 34T S3: 36T S4: 38T" |
| ISCG 05 | Lower Tabs Only |
| Inserción máxima de tija por talla | S1: 225mm S2: 245mm S3:265mm S4: 295mm |
| Diámetro de tija | 31.6mm |
| Anclaje de freno | 200mm Post Mount |
| Neumático recomendado | 29 x 2.4 or 27.5 x 2.5 |
| Neumático máximo | 29 x 2.4 (57mm at the Widest Tread) |
| Peso del cuadro S2 sin amortiguador | 3.75 Kg |
Fuente: Forbidden Bike Company · 2026 Dreadnought Tier 2. Especificaciones y disponibilidad sujetas a cambios del fabricante.
| Medida | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Reach | 430 | 450 | 471 | 491 |
| Stack | 618 | 632 | 645 | 659 |
| Tubo superior horizontal | 572 | 595 | 618 | 641 |
| Tubo de sillín | 400 | 420 | 440 | 470 |
| Ángulo efectivo de sillín | 77.1 | 77.1 | 77.1 | 77.1 |
| Ángulo real de sillín | 74.1 | 75.8 | 77.1 | 77.1 |
| Pipa de dirección | 90 | 105 | 120 | 135 |
| Ángulo de dirección | 63.1 | 63.1 | 63.1 | 63.1 |
| Centro delantero | 775 | 802 | 829 | 855 |
| Centro trasero | 431 | 446 | 460 | 475 |
| Distancia entre ejes | 1206.5 | 1247.6 | 1288.8 | 1330.0 |
| Caída del pedalier | -19.6 | -19.6 | -19.6 | -19.6 |
| Altura del pedalier | 341 | 341 | 341 | 341 |
| Altura libre | 771 | 775 | 777 | 780 |
| Longitud de horquilla | 586 | 586 | 586 | 586 |
| Offset de horquilla | 44 | 44 | 44 | 44 |
Fuente: Forbidden Bike Company · 2026 Dreadnought Tier 2. Especificaciones y disponibilidad sujetas a cambios del fabricante.
| Talla | Estatura recomendada |
|---|---|
| S1 | 158–168cm |
| S2 | 168–178cm |
| S3 | 178–188cm |
| S4 | 188–198cm |
Las franjas pueden solaparse. La elección debe considerar proporciones, preferencias y ajuste; consúltanos para concretarla.
Fuente: Forbidden Bike Company · 2026 Dreadnought Tier 2. Especificaciones y disponibilidad sujetas a cambios del fabricante.
Fuente: Forbidden Bike Company · 2026 Dreadnought Tier 2. Especificaciones y disponibilidad sujetas a cambios del fabricante.
